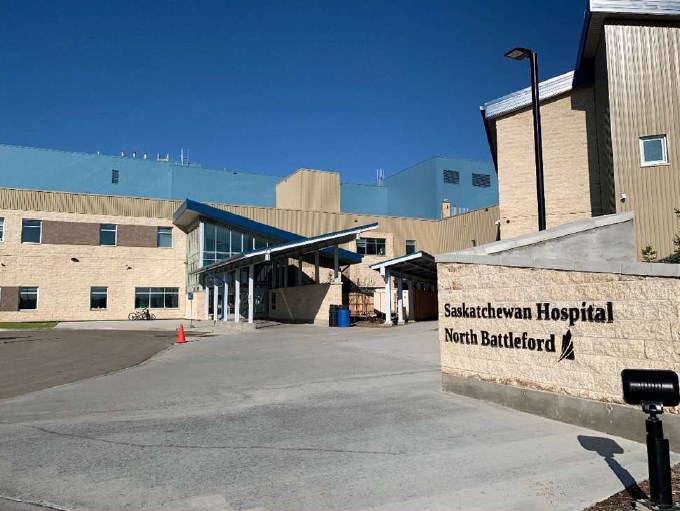

The Government of Saskatchewan Friday released the third party independent audit of the Saskatchewan Hospital North Battleford (SHNB) facility, and is acting on recommendations to repair identified deficiencies and strengthen governance and processes.
“Government initiated this independent audit to fully understand the state of the facility to ensure the safety of patients, staff and families,” Central Services Minister Ken Cheveldayoff said. “The audit is a snapshot in time that provides a foundation to address any deficiencies at no cost to government under the unique protections provided through the Public-Private-Partnership (P3) Project Agreement.”
Following a Request for Proposals (RFP) process, JPH Consulting was selected to conduct a construction audit of the quality of materials, equipment, labour and workmanship during the construction phase, and a review of processes used during design, construction and operating periods to examine their adherence to the P3 Project Agreement between Access Prairies Partnership (APP) and the Government of Saskatchewan.
The construction audit identified a range of construction-related deficiencies and issues, and noted the majority of items are not unexpected in a facility of this size. The audit also states the facility’s construction generally meets the requirements set out in the Project Agreement.
Central Services is working with APP to address items, giving priority to ensure compliance with building code, fire code and safety requirements.
For an overview of the scope of the review, here is the link to the Saskatchewan Hospital North Battleford Audit PDF:
https://publications.saskatchewan.ca/api/v1/products/107588/formats/120652/download
“Ensuring the safety of the patients and staff at the Saskatchewan Hospital North Battleford has always been and continues to be our priority,” Graham Capital President and owner of APP and Graham’s Chief Financial Officer Tim Heavenor said. “This facility has had its challenges, many of which have already been resolved at no cost to the people of Saskatchewan. We are committed to addressing the remaining issues outlined in the audit report, so that patients and staff can continue to deliver and receive treatment in a modern mental health facility.”
The process evaluation noted that while commissioning and quality assurance plans were in place to guide the construction phase, the plans were not fully implemented due to unclear roles and responsibilities. As well, formalized approval and other processes were not consistently followed in accordance with the Project Agreement resulting in some gaps in record-keeping documentation.
“This complex project did have challenges and we have learned from this experience that while we have solid plans in place, we need stronger governance to ensure the plans and formal processes are strictly followed,” Minister Responsible for SaskBuilds Gordon Wyant said. “These learnings will be applied to future projects, including traditional and P3 builds.”
Following are findings from Group2 Architecture Interior Design Ltd. regarding fit and finish:
Our findings from the Saskatchewan Hospital North Battleford audit concluded that the fit and finish of most architectural products is generally well performed, but that there are some overarching concerns which need to be reviewed further and addressed immediately.
Generally, the workmanship in the finishes and construction of the building are complete to a competent level. Deficiencies were observed throughout the facility to varying degrees of magnitude, but this is not unexpected in a facility of this size. Caulking of dissimilar materials, choice and installation of finishes, and building layout and design were generally achieving the requirements of the Project Agreement. However, we had several concerns as follows:
• Several doors in fire separations where the door leaf did not appear to be appropriately fire rated, or the necessary hardware (flanges, seals) were not included. Additionally, doors in fire separations were observed to be propped open in administrative spaces.
• Confused approach to anti-ligature requirements as several doors have anti-ligature handles, but parallel arm door closers mounted to the interior of the frame. Closers concealed in the door frame, floor or a hinge-based closer are more appropriate hardware solutions with respect to meeting anti-ligature needs.
• The X-Y gantry tracks in bariatric patient rooms are to be mounted flush with the ceiling as required in the PA. They are mounted below the ceiling from posts and provide a significant ligature risk. Further to this, only one track appears to have been installed leading into the washroom, whereas other rooms observed have no track passing into the washroom which appears to not meet PA requirements.
• Egress paths were observed to differ from what was planned and no exceptions or variances can be found. Further to this, in the workshop area, a path of egress leads to an overhead door which does not meet National Building Code requirements for an exit. It is expected that these rooms are large enough to also require two means of egress which was not observed. Exiting and life safety should be reviewed more thoroughly across the entirety of the facility.
• Sprinkler coverage, specifically in the exit stairwells, appeared to be limited. It was observed that one head was typically provided at the top of the stairwell, and one at the bottom landing, but none at the intermediate landings. This should be reviewed immediately for compliance with the Building Code.
• Staff had noted several concerns with acoustics throughout the facility including the Video Court, Visiting Centre and Administration and Discharge units where rooms for secure conversations can be heard from the lobby and where the acoustics inside the room are so harsh that the judges using the video court system are not able to hear the patient. Additionally, a patient wing was found to be missing acoustic insulation in the walls which separate the washrooms from the corridor – it is not clear how many other locations have been missed as well. Door hardware such as gaskets and sweeps were often ill-fitting or missing entirely.
• Compounding the concerns with acoustics: the majority of ventilation within the building is very loud. The workspace in the Regional Admin suite is very problematic and does not make for a space which is conducive to occupation.
• Wayfinding is very difficult within the building due to a lack of access to views of the exterior for orientation, and the design decision to use a very limited colour palette. The choice to name the wings River or Prairie View, is not terribly effective as there is so little access to exterior views outside of the patient wings.
• The wooden bumper rail throughout the main corridors in the unsecured portion of the facility appears to be required as per the PA but there is a concern that when it receives normal wear and tear it will become a porous material which will lead to IP&C concerns.
It is our view that the above items, specifically concerning life-safety and anti-ligature, should be addressed immediately.
For more details on the findings above and below, here is the link to Appendix A - Sub-Consultant Findings:
https://publications.saskatchewan.ca/api/v1/products/107590/formats/120654/download
Following are principle findings of Read Jones Christoffersen on the building envelope:
With the exception of the following, the exterior above grade building envelope components are performing similar to buildings of its age and construction:
• Condensation was observed on interior surfaces of the exterior doors and windows. At the exterior doors unsealed junctions were noted between door frames and doors, leading to cold air infiltration and condensation on interior surfaces. Adjustment of the door sweeps and weather stripping would help alleviate this. Adjustments to the humidification and ventilation system is also anticipated. At the windows, condensation forms on colder interior surfaces when interior humidity levels are too high for the exterior temperatures. The thermal breaks between the glazing and frame nosing may also be contributing to this problem. Further review of the thermal breaks and glazing is therefore recommended. This will require selective removal of insulated glass units, at which time the thermal break can be examined and the glazing could be checked for glass type, thicknesses and thermal performance.
• Air leakage was observed below sloped roofs between roof deck and top of walls. This appears to be related to both a material (detailing) and workmanship issue. Spray foam insulation appears to be used as the primary vapour barrier material, which does not appear to adequately seal the junctions between the exterior wall vapour barrier and the sloped roof deck. Detailing of these areas also fails to connect the roof vapour barrier with the spray foam and the exterior wall air vapour barrier membrane, resulting in air leakage at these junctions. Further review and repair of these areas is therefore recommended.
• Isolated leakage at balcony and exterior wall locations was observed. These areas warrant further review and repair including, but not limited to air/vapour barrier, flashing and exterior sealant repairs.
• Exterior sealant deficiencies were noted throughout. This should be addressed during the next warm season to prevent further bulk water entry and potential moisture ingress into the exterior walls and balcony and soffit assemblies.
Following are findings by TYZ Engineering regarding a mechanical review:
- Seventy-five (75) items meet the Schedule 3 requirements.
- Twenty-five (25) items did not meet the Schedule 3 requirements.
- Eighteen (18) items could not be verified during the site review.
Overall, the mechanical installation,material and equipment was typical of a commercial installation.
The reviewed items that did not meet the Schedule 3 requirements spanned all aspects of the mechanical system. Below is a sample of issues that were found to be deficient from the Schedule 3:
- Lack of maintenance clearances to equipment
- Lack of proper vibration isolation on equipment
- Insulation that does not meet the energy code
A number of items could not be verified due to the lack of documentation, and it is recommended that an additional review be performed to ensure that Operations and Maintenance manuals are complete with all equipment cut sheets, maintenance schedules, and test and commissioning forms.
Overhangs greater than 4 ft in depth did not have fire protection. Additional investigation into the overhang construction is recommended to ensure NFPA 13 is met.
For photos and more details of the review findings, here is the link to Appendix C - PlanGrid Task Report:
https://publications.saskatchewan.ca/api/v1/products/107592/formats/120656/download
Following are findings from ISL Engineering and Land Services Ltd. (ISL) civil engineering review/audit :
Our findings from the Saskatchewan Hospital North Battleford audit concluded that, generally, the workmanship and quality of the soft and hardscapes varied on the site, but overall is considered poor. There were many deficiencies observed throughout and vary depending on the location on the site. Underground utilities could not be observed, however, the as-built drawings indicate many changes from the original design drawings. There are some larger concerns that need to be reviewed further and addressed.
The sanitary sewers themselves could not be observed. However, a foul odor near the main entrance came from the sanitary grease trap. We note that the specific unit used may be inappropriate for this purpose. While the unit protects against floatables, it also collects sediment and solids. The unit smells as it is likely full of grease, sanitary solid waste and sediment; and needs to be cleaned out. The health authority should reconsider their full need of the device and maintenance obligations.
High groundwater was indicated during installation in the field inspections and had infiltrated into the sanitary sewer and lift station. There are no notes on whether this was remedied. A CCTV video review of the existing sanitary sewer infrastructure is recommended. Significant infiltration will affect the lift station pumping and offsite discharge volumes.
The underground infrastructure related to the lift station could not be observed. Questions were raised in the review of the asbuilt drawings.
- Is the lift station is connected to emergency power generator (through electrical)?
- What are the design constraints necessitating the sanitary storage tank?
- The gravity sewer plumbing connections associated with the lift station and storage tank cannot be maintained or cleaned.
The underground infrastructure of the water system could not be observed. Our review of the as-built drawings indicated:
- Hydrants and connecting pipes are adequately sized for fire flows. No fire flow test results were available.
- The north water connection appears too close to the SaskTel line (as-built).
- A portion of 250mm water line along the creek appears to conflict with the existing bridge (as-built).
The underground storm sewer infrastructure could not be observed. However, the surface overland flow and conveyance system demonstrated many substantial issues with the storm drainage. Examples are:
- Improperly located and graded catchbasins.
- Multiple culverts don’t have end-treatment or rip rap and erosion is evident.
- The storm design calculations are not correct, however, the pipes appear to be of sufficient size.
- There is standing water where there should be a flowing creek.
- Infrastructure has been used that is not reflected with any design or detail.
- Swale outlet to Pond 1 rip-rap is buried.
Overall the ponds are not complete or are missing critical design elements. All ponds are intended to be dry outside of a rainfall event. Items include:
- Pond bottoms are designed flat, and will not drain dry.
- There is standing water in Pond 1, and the east inlet structure is higher than the pond bottom.
- Pond 1 Emergency Escape Route is missing (C01-02.01).
- There is standing water in Pond 2.
-· Pond 2 missing emergency escape, end treatment and rip-rap (C01-02.02).
- Pond 2 culvert missing inlet structure, control plate, and rip-rap (C01-02.02).
Overall the surface works were either of poor quality or created grading and ponding issues. It was noted that a portion of the trail in the SE corner does not provide connectivity with no trail for security checks.
Overall the site grading has significant grading and drainage issues. Items include:
- Minimal grades in softscapes, causing ponding.
- A lack of positive drainage away from the buildings.
- Roof drainage directed towards building foundation or draining across sidewalks.
- Landscaping grades exceeding 4:1 slopes.
- Many examples of erosion.
- Grading along Pond 2 appears to exceed 4:1 slopes.
- There are many examples of freezing prone areas.
- Lay-by removed for wheelchair ramp addition.
Regarding concrete:
- Rainwater ponds on concrete indicating inadequate slope.
- Workmanship and concrete deterioration at building entrances.
- Concrete heaving at loading dock.
- Ponding on the 2nd level exterior space.
- Concrete cracking, spalling and pitting in various locations around the site.
- Concrete deterioration at bench pads.
Asphalt surface have many instances of poor grades and ponding water where it’s not intended. Though this is not mentioned in the PA, the surface grades would not meet Local Authority guidelines.
There are no materials testing available, and a determination of the actual pavement structure was not possible. We could not confirm heavy duty vs. light duty asphalt.
- Asphalt longitudinal cracks at loading dock.
- Asphalt pathway width and workmanship is poor.
Findings by Hanna Crosby and Associates regarding the grounds:
One of the main concerns on the site is the grading of the landscape and some hard surfaces. The grading concerns exist where slopes are too shallow or too steep. Shallow slopes resulted in:
- unwanted ponding on site;
- poor turf establishment and growth;
- inappropriate moisture levels for the design type of turf or plant;
- bare dirt, muddy conditions, high erosion potential and unusable spaces.
The most concerning locations where the above were seen were:
- across and adjacent to walkways on the north side, leading to unsafe conditions at the walk edge for those using wheelchairs or other assistive devices;
- between the building and the landscape berms that are setback from the secure portion of the facility;
- two very shallowly sloped drainage swales directed toward the southeast parking area and the storm pond. Both swales are routed through planting beds where planting and mulch impede flow and high moisture levels affect the health of plant material;
- around the three CRU buildings; poor drainage in this area is resulting in poor turf growth, turf saturation, erosion and concrete surface issues;
- in two parking area areas where pedestrian routes cross parking lots.
Steep slopes and poor grade transitions has resulted in:
- poor turf establishment;
- unsafe conditions for maintenance operations;
- conditions that make mowing operations detrimental to the ongoing health of the turf.
The most concerning locations where the above were seen were:
- sides and tops of berms adjacent to secure portion of the facility, as well as around the Cogen units;
- four non-secure courtyards where the maximum slope allowed for a turfed areas appears to be exceeded; in these areas there is no safe way to carry out maintenance operations without extra safety precautions being employed such as anti-fall harnesses and cleated footwear.
Generally, turf establishment is poor. The largest area of concern is the area south of the building toward the river. This area has very poor seed establishment. There are large gaps between clumps of grass and large areas of bare dirt. This is an immediate concern due to the very high likelihood of weed species establishing in these areas.
Plant material choices are generally in alignment with the Project Agreement as it relates to indigenous species and variety of types. Plant material is generally doing well, however, as noted above, some material is affected by poor grading. One striking example of this is where trees have been planted in the bottom of a swale near the southeast parking lot.
In some locations, trees have been planted too close to each other, to a curb or walk or to traffic signage. Over time, tree growth patterns are likely to affect or interfere with these elements such that safety and condition will be negatively affected.
Generally, the site is accessible as it relates to pedestrian routes. One exception exists at a walkway from the southeastern most parking lot where pedestrian ramps are missing from either end of the walkway.
It should be noted that the ongoing work to replace the roof was impacting the site and its review during the day of the audit. In the area of active construction, we were not able to review the site within the construction fence. Additionally, it is apparent that the roof repair actions have damaged the site where equipment access roads were created as well as crane ways adjacent to and accessing the building. We would expect that once roof replacement tasks are completed all areas will be restored to the condition required in Project Agreement.
See more links below.
Here is the link to Appendix B - Project Agreement Analysis:
https://publications.saskatchewan.ca/api/v1/products/107591/formats/120655/download
Here is a link to Appendix D - Process Analysis:
https://publications.saskatchewan.ca/api/v1/products/107593/formats/120657/download
